Technic >> EL backlight

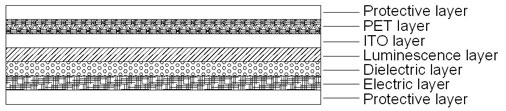

EL standard structure:
Standard Specification:
Electrical
Voltage range 30-250VAC
Working frequency 50¡«5000Hz
Capacitance 0.3nf/cm2 min 400Hz
Current 0.14mA/cm2 max 100V 400Hz1
Power dissipation 2mw/ cm2 max
Humidity testing 96Hr 60¡æ 90%RH 100V 400Hz
Optical
Brightness Blue 50cd/ cm2
Green 85cd/ m2
Blue & Green 85cd/ cm2
White 75cd/ m2		 100V 400Hz
Half-life >3000Hr
Life-cycle >25000Hr Inverter drive
Environment
Operating temperature -50¡« 60¡æ 5cycles/30min
Storage temperature -65 ¡«85¡æ

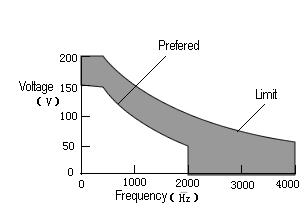

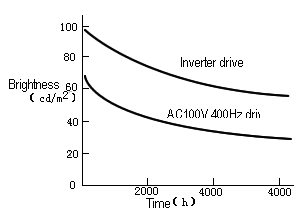

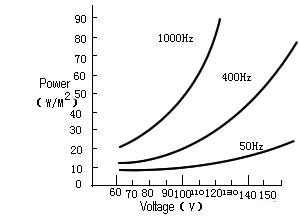

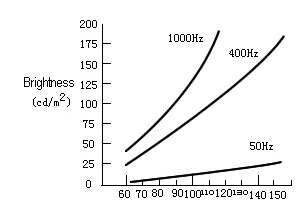

Photoelectric diagram:
